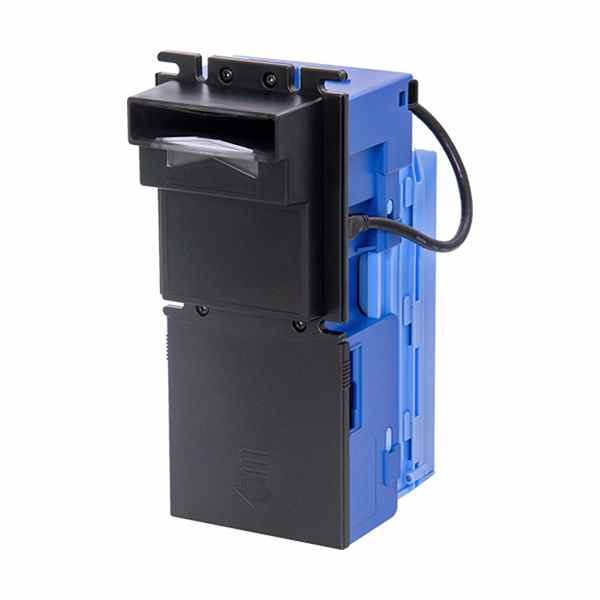

ICT XBA-54CN2US6 Bill Acceptor
The ICT XBA-54CN2US6 is an XBA bill acceptor with wide-angle insertion technology and support for firmware updates.
The ICT XBA-54CN2US6 is an XBA Series bill acceptor configured with a 110V NISR USD6 combo with GP58VE. Its wide-angle banknote insertion technology, strong ambient-light immunity, and optical-mechanical anti-fishing structure support cash acceptance in equipment where light conditions and transaction security matter. A built-in USB port enables firmware upgrades by USB flash drive, and the unit includes auto-calibration technology with a multi-color optical sensor.
E & D Trading combines authorized ICT distribution with authorized service-center support for this model. Our specialists can help with programming and currency-set fit before purchase, while in-house technicians handle repairs. Nationwide delivery is available, backed by more than 30 years in business. We help verify the configuration before dispatch.
Key points
- 110V NISR USD6 combo with GP58VE for the listed model configuration
- High immunity against strong ambient light for the listed model configuration
- Optical-mechanical anti-fishing structure for the listed model configuration
- Firmware upgrades via USB flash drive for the listed model configuration
Manuals & DIP switch settings
Official ICT documentation, mirrored here for faster downloads. We are an authorized ICT distributor and service center — if a sheet does not match the unit in front of you, call (877) 922-6707 and we will identify it from the label.
- Installation guideSP1-V & XBA Combo Installation Guide (EN) PDF · 4.2 MB
- Installation guideXBA Installation Guide (EN) PDF · 4.1 MB
- Installation guideXBA Quick Start Guide (EN) PDF · 3.8 MB
- Installation guideXBA-mini Installation Guide (EN) PDF · 4.0 MB
- DIP switch settingsXBA mini-USD6 — ICT-BC+Pulse PDF · 35 KBRead as a table
- DIP switch settingsXBA mini-USD6 — ICT104U+ICT104V+JPSTD+MDB+Pulse PDF · 424 KBRead as a table
- DIP switch settingsXBA mini-USD6 — ICT104U+ICT104V+JPSTD+MDB+Special Pulse PDF · 38 KBRead as a table
- DIP switch settingsXBA-USD6 — ICT002U+ICT104U+ICT104V+MDB+ Special Pulse PDF · 413 KBRead as a table
- DIP switch settingsXBA-USD6 — ICT002U+ICT104U+ICT104V+MDB+Pulse PDF · 440 KBRead as a table
- DIP switch settingsXBA-USD6 — NISR+Pulse PDF · 413 KBRead as a table
- DIP switch settingsXBA-USD6 — ccNet+ICT104U+ICT106U+MDB+Pulse PDF · 146 KBRead as a table
- DIP switch settingsXBA-USD6 — ccTalk+ICT104U+NISR+Pulse+RS232 A0 PDF · 548 KBRead as a table
- BrochureSP1-V+Combo- Brochure (EN) PDF · 374 KB
- BrochureXBA Brochure (EN) PDF · 332 KB
- BrochureXBA-mini Brochure (EN) PDF · 368 KB
DIP switch sheets are also transcribed into readable tables so you can set the switches straight from your phone.
