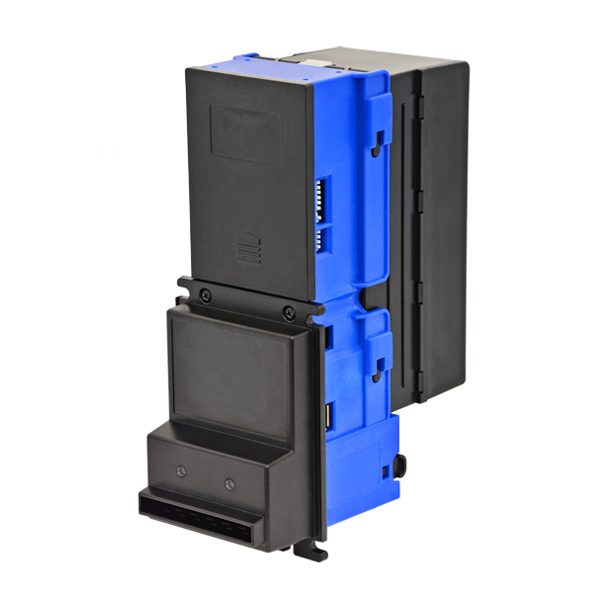

Service and setup notes for the ICT PA7E
The PA7E page is the A/V Series reference repair techs use when the cabinet is already in the field.

Key features
- Notes can enter the PA7E in any of the four orientations
- Documented for the PA7E: uSB flash-drive firmware updates for convenient field service
- The PA7E calibrates its read path during setup
- Documented for the PA7E: dual-color identification LED for visible unit status
- The PA7E uses a secured cash housing
Typical applications
- Gaming route equipment
- Amusement machines
- Car wash payment stations
- Vending and kiosk builds
Details and service notes
Sites already on file for the PA7E: Gaming route equipment, Amusement machines, Car wash payment stations, and Vending and kiosk builds. Host connections named in the PA7E notes: USB. Notes can enter the PA7E in any of the four orientations.
The parts desk in Hollywood treats PA7E as a specific code, not a family guess. Phone (877) 922-6707 with the machine make. Bench work is billed at $45 plus parts.
Manuals & DIP switch settings
Official ICT documentation, mirrored here for faster downloads. We are an authorized ICT distributor and service center — if a sheet does not match the unit in front of you, call (877) 922-6707 and we will identify it from the label.
- Installation guidePA7E Installation Guide (EN) PDF · 3.4 MB
- DIP switch settingsPA7E-USD6 — 5V Enable+ICT104U+NISR+Pulse PDF · 480 KBRead as a table
- BrochurePA7E Brochure (EN) PDF · 287 KB
DIP switch sheets are also transcribed into readable tables so you can set the switches straight from your phone.
Frequently asked questions
Which bill-box capacities are available for the PA7E?
How is PA7E firmware updated?
More from the A/V Series
View series
A6
ICT Superstore treats the A6 as an A/V Series choice for bill acceptors & recyclers work, and the Hollywood bench matches the build…

A7
For bill acceptors & recyclers jobs, the A7 is the A/V Series model ICT Superstore programs in Hollywood rather than shipping a…

PA7/PA7-U
For bill acceptors & recyclers jobs, the PA7/PA7-U is the A/V Series model ICT Superstore programs in Hollywood rather than…

V6
The V6 page is the A/V Series reference repair techs use when the cabinet is already in the field.
Get a quote on the ICT PA7E
Tell us the currency, denominations, interface and machine you are fitting. We will confirm the exact ICT part number, lead time and price while you are on the phone.
