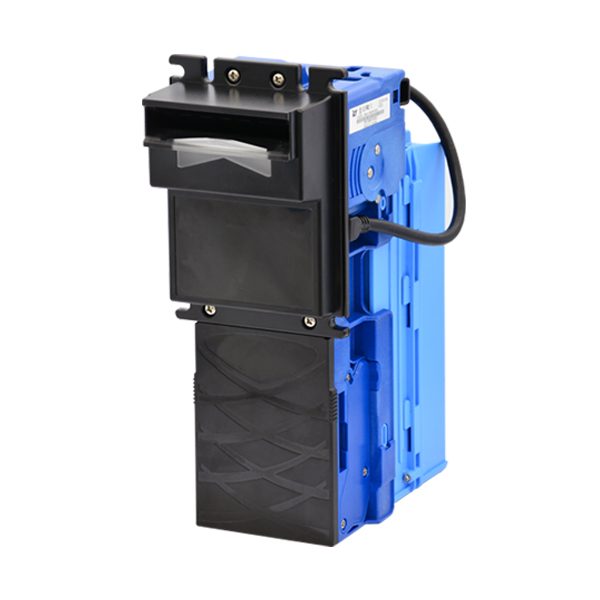

Service and setup notes for the ICT XBA-mini
The XBA-mini page is the XBA Series reference repair techs use when the cabinet is already in the field.

Key features
- Documented for the XBA-mini: wide-angle banknote insertion supports flexible note presentation
- ICT publishes 98 percent or higher on the XBA-mini
- Documented for the XBA-mini: high immunity to strong ambient-light conditions
- Documented for the XBA-mini: optical and mechanical anti-fishing structure
- Documented for the XBA-mini: firmware updates via USB, MDB-FTL, or TTL-Serial
- Documented for the XBA-mini: improved water-draining system for severe conditions
- The XBA-mini uses a secured cash housing
Typical applications
- Outdoor car washes
- Vending machines
- Amusement equipment
- Weather-exposed payment kiosks
Details and service notes
Sites already on file for the XBA-mini: Outdoor car washes, Vending machines, Amusement equipment, and Weather-exposed payment kiosks. Host connections named in the XBA-mini notes: MDB and USB. ICT publishes 98 percent or higher for the XBA-mini.
Orders leave the E & D Trading bench in Hollywood, Florida. Labor on a unit sent in is $45 plus the parts used. Call (877) 922-6707 and quote XBA-mini so the desk matches it before anything ships.
Manuals & DIP switch settings
Official ICT documentation, mirrored here for faster downloads. We are an authorized ICT distributor and service center — if a sheet does not match the unit in front of you, call (877) 922-6707 and we will identify it from the label.
- Installation guideXBA-mini Installation Guide (EN) PDF · 4.0 MB
- DIP switch settingsXBA mini-USD6 — ICT-BC+Pulse PDF · 35 KBRead as a table
- DIP switch settingsXBA mini-USD6 — ICT104U+ICT104V+JPSTD+MDB+Pulse PDF · 424 KBRead as a table
- DIP switch settingsXBA mini-USD6 — ICT104U+ICT104V+JPSTD+MDB+Special Pulse PDF · 38 KBRead as a table
- BrochureXBA-mini Brochure (EN) PDF · 368 KB
DIP switch sheets are also transcribed into readable tables so you can set the switches straight from your phone.
Buy the ICT XBA-mini online
Shop all XBA-mini at BillAcceptors.usThese XBA-mini configurations are in stock right now at BillAcceptors.us, our online store — live pricing, ships programmed to your currency. Need a currency set or interface that is not listed? Call (877) 922-6707 and we will quote it.
| Part number | Configuration | Price | |
|---|---|---|---|
| XBAm-14FNFUS6 | 12V, 400-note stacker, MDB, pulse, ICT104U, ICT104V, USD | $275.00 | Buy |
| XBAm-14FNPIL4 | 12V, 400-note stacker, MDB, pulse, ICT104U, ICT104V | $275.00 | Buy |
| XBAm-14FNPUS6 | 12V, 400-note stacker, MDB, pulse, ICT104U, ICT104V, USD | $275.00 | Buy |
| XBAm-31DNMUS6 | 100-note stacker, MDB, USD | $275.00 | Buy |
| XBAm-34DNMRU7 | 400-note stacker, MDB | $275.00 | Buy |
| XBAm-34DNMUS6 | 400-note stacker, MDB, USD | $275.00 | Buy |
| XBAm-34FNMIL3 | 400-note stacker, MDB | $275.00 | Buy |
Frequently asked questions
How can XBA-mini firmware be updated?
Is the XBA-mini suitable for bright locations?
