CSD Series

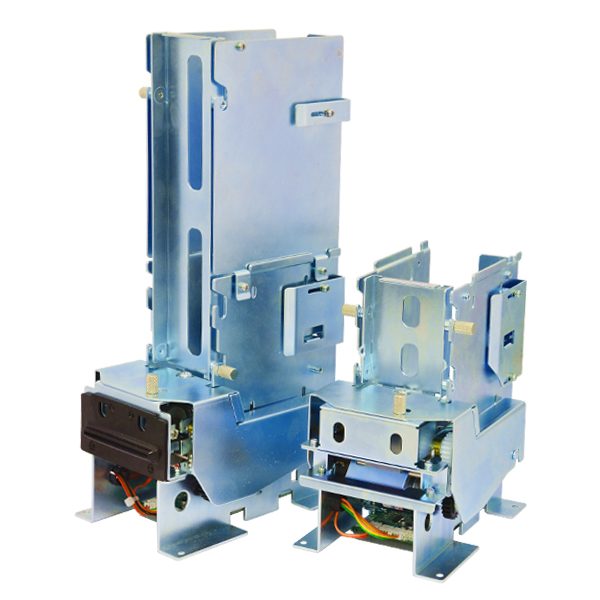

Service and setup notes for the ICT CSD-300/600

Route operators asking for the CSD-300/600 are usually replacing a CSD Series unit already in a cabinet.

Key features

  • Documented for the CSD-300/600: standard or drop card dispenser styles
  • Documented for the CSD-300/600: approximately one-second dispensing per card
  • Documented for the CSD-300/600: 300- to 600-card capacity
  • Documented for the CSD-300/600: pulse interface support
  • Documented for the CSD-300/600: hopper interface support
  • Documented for the CSD-300/600: rS232 interface support
  • Documented for the CSD-300/600: accepts 12V or 24V DC power
  • Documented for the CSD-300/600: easy card filling

Typical applications

  • Card vending kiosks
  • Transit card machines
  • Arcade card stations
  • Access card dispensers

Details and service notes

The desk confirms the connector before quoting. Sites already on file for the CSD-300/600: Card vending kiosks, Transit card machines, Arcade card stations, and Access card dispensers. Cashbox sizes named for the CSD-300/600: 600 notes. Host connections named in the CSD-300/600 notes: pulse and RS-232.

Supply figures named for the CSD-300/600: 12 V and 24 VDC. Hollywood, FL 33020 is where this hardware is tested. Quote CSD-300/600 when you call (877) 922-6707. If you would rather send the unit, labor is $45 plus parts, not a flat fee.

Manuals & DIP switch settings

Official ICT documentation, mirrored here for faster downloads. We are an authorized ICT distributor and service center — if a sheet does not match the unit in front of you, call (877) 922-6707 and we will identify it from the label.

Frequently asked questions

What is the difference between standard and drop CSD dispensers?
The CSD is offered in standard and drop dispensing styles. The best style depends on the card path and cabinet design of the host machine. Call 877-922-6707 to review your installation before ordering.
Which interface does the CSD-300/600 use?
ICT lists Pulse, Hopper, and RS232 interfaces for this card dispenser. Compatibility must be confirmed against your controller and wiring. Call ICT Superstore by E & D Trading at 877-922-6707 for configuration assistance.

Get a quote on the ICT CSD-300/600

Tell us the currency, denominations, interface and machine you are fitting. We will confirm the exact ICT part number, lead time and price while you are on the phone.
