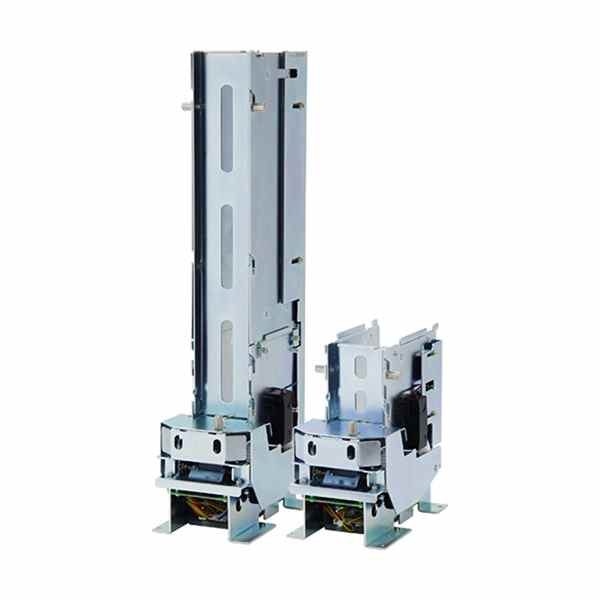

CVD Series

Service and setup notes for the ICT CVD2300 / CVD21000

Route operators asking for the CVD2300 / CVD21000 are usually replacing a CVD Series unit already in a cabinet.

Key features

  • Documented for the CVD2300 / CVD21000: standard or drop-type card dispensing configurations
  • Documented for the CVD2300 / CVD21000: approximate one-second card dispensing speed
  • Documented for the CVD2300 / CVD21000: card capacity options from 300 to 1000 cards
  • Documented for the CVD2300 / CVD21000: easy-fill design for routine service
  • Documented for the CVD2300 / CVD21000: optional low-level card sensor
  • Documented for the CVD2300 / CVD21000: pulse, Hopper, and RS232 interface options
  • Documented for the CVD2300 / CVD21000: available for 12V or 24V operation

Typical applications

  • Card vending kiosks
  • Transit or access-card issue systems
  • Arcade card dispensers
  • Self-service loyalty-card stations

Details and service notes

The desk confirms the connector before quoting. Sites already on file for the CVD2300 / CVD21000: Card vending kiosks, Transit or access-card issue systems, Arcade card dispensers, and Self-service loyalty-card stations. Cashbox sizes named for the CVD2300 / CVD21000: 1000 notes. Host connections named in the CVD2300 / CVD21000 notes: pulse and RS-232.

Supply figures named for the CVD2300 / CVD21000: 12 V and 24 V. The parts desk in Hollywood treats CVD2300 / CVD21000 as a specific code, not a family guess. Phone (877) 922-6707 with the machine make. Bench work is billed at $45 plus parts.

Manuals & DIP switch settings

Official ICT documentation, mirrored here for faster downloads. We are an authorized ICT distributor and service center — if a sheet does not match the unit in front of you, call (877) 922-6707 and we will identify it from the label.

Frequently asked questions

What card capacity is available for the CVD Series?
CVD2300 and CVD21000 configurations are available with capacity from 300 to 1000 cards. Call 877-922-6707 to review the card format, delivery type, and capacity that fit your cabinet.
Which interfaces are offered for this card dispenser?
Pulse, Hopper, and RS232 interface options are available. The right selection depends on the host controller and application, so contact ICT Superstore at 877-922-6707 for a configuration check.

Get a quote on the ICT CVD2300 / CVD21000

Tell us the currency, denominations, interface and machine you are fitting. We will confirm the exact ICT part number, lead time and price while you are on the phone.
