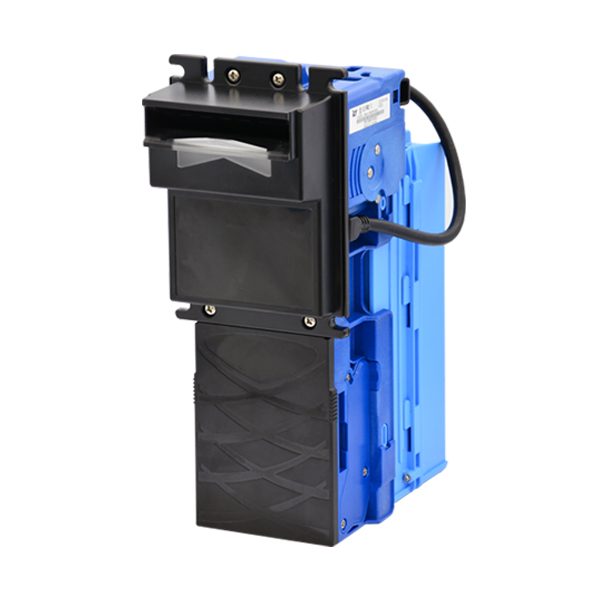

ICT XBAm-34DNMRU6 Mini Bill Acceptor
The ICT XBAm-34DNMRU6 is an XBA mini bill acceptor with wide-angle insertion, optical sensing, and listed configuration details.
The ICT XBAm-34DNMRU6 is an XBA mini bill acceptor configured with a 34V MDB configuration, 400-note stacker box, and Russian Dollar designation. It uses wide-angle banknote insertion technology and has high immunity against strong ambient light. The optical-mechanical anti-fishing structure, auto-calibration technology, and multi-color optical sensors are part of the listed design. Firmware can be updated through USB, MDB-FTL, or TTL-Serial methods.
E & D Trading is an authorized ICT distributor and authorized service center with more than 30 years of experience. Our team can help confirm programming and currency-set requirements before purchase, then provide in-house repair support for this model. Units and service ship nationwide. Model fitment can be reviewed before shipment.
Key points
- 34V MDB configuration with 400-note stacker box for the listed model configuration
- High immunity against strong ambient light for the listed model configuration
- Optical-mechanical anti-fishing structure for the listed model configuration
- Firmware updates through USB, MDB-FTL, or TTL-Serial for the listed model configuration
Manuals & DIP switch settings
Official ICT documentation, mirrored here for faster downloads. We are an authorized ICT distributor and service center — if a sheet does not match the unit in front of you, call (877) 922-6707 and we will identify it from the label.
- Installation guideSP1-V & XBA Combo Installation Guide (EN) PDF · 4.2 MB
- Installation guideXBA Installation Guide (EN) PDF · 4.1 MB
- Installation guideXBA Quick Start Guide (EN) PDF · 3.8 MB
- Installation guideXBA-mini Installation Guide (EN) PDF · 4.0 MB
- DIP switch settingsXBA mini-USD6 — ICT-BC+Pulse PDF · 35 KBRead as a table
- DIP switch settingsXBA mini-USD6 — ICT104U+ICT104V+JPSTD+MDB+Pulse PDF · 424 KBRead as a table
- DIP switch settingsXBA mini-USD6 — ICT104U+ICT104V+JPSTD+MDB+Special Pulse PDF · 38 KBRead as a table
- DIP switch settingsXBA-USD6 — ICT002U+ICT104U+ICT104V+MDB+ Special Pulse PDF · 413 KBRead as a table
- DIP switch settingsXBA-USD6 — ICT002U+ICT104U+ICT104V+MDB+Pulse PDF · 440 KBRead as a table
- DIP switch settingsXBA-USD6 — NISR+Pulse PDF · 413 KBRead as a table
- DIP switch settingsXBA-USD6 — ccNet+ICT104U+ICT106U+MDB+Pulse PDF · 146 KBRead as a table
- DIP switch settingsXBA-USD6 — ccTalk+ICT104U+NISR+Pulse+RS232 A0 PDF · 548 KBRead as a table
- BrochureSP1-V+Combo- Brochure (EN) PDF · 374 KB
- BrochureXBA Brochure (EN) PDF · 332 KB
- BrochureXBA-mini Brochure (EN) PDF · 368 KB
DIP switch sheets are also transcribed into readable tables so you can set the switches straight from your phone.
